Cisco Catalyst Meraki C9300L-24T-4X-M Gigabit Switch

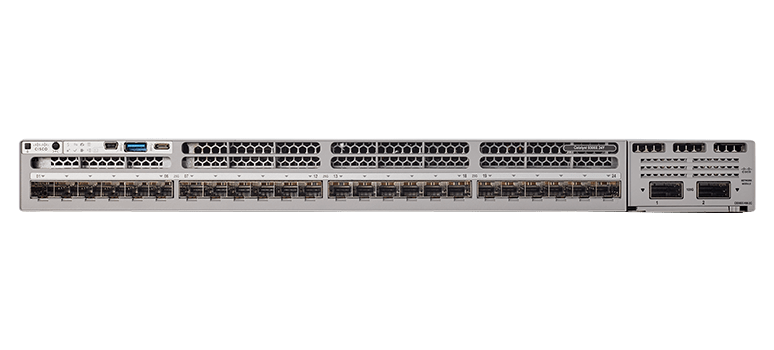

High-performing access switches for demanding enterprise environments





Cisco Meraki Products
Catalyst Meraki 9300L-M Gigabit Switches
Cisco Meraki Catalyst 9300L 24-port 1 GbE Data with 4x 10G/1G fixed uplinks Switch
Important Licensing Information: To activate and manage your Cisco Meraki Switch, a purchase of a Cisco Meraki license is mandatory.
#C9300L-24T-4X-M
Our Price: Request a Quote
Cisco Meraki Enterprise License and Renewal License
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 1 Year
#LIC-C9300-24E-1Y
List Price: $1,691.00
Our Price: $913.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 3 Year
#LIC-C9300-24E-3Y
List Price: $3,190.00
Our Price: $1,723.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 5 Year
#LIC-C9300-24E-5Y
List Price: $5,335.00
Our Price: $2,881.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 7 Year
#LIC-C9300-24E-7Y
List Price: $7,481.00
Our Price: $4,040.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 10 Year
#LIC-C9300-24E-10Y
List Price: $10,686.00
Our Price: $5,771.00
-->

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST


Overview:

The Catalyst 9300L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300L-M provides multigigabit ports, 320GB stacking with four fixed 10G uplinks. The Catalyst 9300L-M delivers resiliency with fast stack convergence. The Catalyst 9300L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300X-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

A Catalyst 9300X switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300X equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.

Features

Category Features
Description 24-port 1 GbE Data with 4x 10G/1G fixed uplinks
Highlights
  • Layer-3
  • Four SFP+(10G/1G) fixed uplinks on all models
  • mGig support on UPOE models
  • 320G Dual Dedicated Hardware Stacking Ports
  • 60W UPoE Support (802.3bt)
  • Redundant hotswappable power supplies and replaceable fans
Management
  • Managed via Cisco Meraki Dashboard
  • Zero-touch remote provisioning (no staging needed)
  • Basic configuration capability via local management page
  • Detailed historical per-port and per-client usage statistics
  • Operating System, device, and hostname fingerprinting
  • Automatic firmware upgrades with scheduling control
  • SNMP and SYSLOG support for integration with other network management solutions*
Remote Diagnostics
  • Email, SMS and Mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Optional stacking kit allowing 8 switches in a stack with 320Gbps of stacking bandwidth
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Faster convergence
Ethernet Switching Capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled)
  • Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, multi-chassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC Forwarding Entries: 32K
Layer 3
  • Static routing, OSPFv2
  • Multicast routing (PIM-ASM)
  • Warm Spare (VRRP) *
  • DHCP Server, DHCP Relay
Security
  • Integrated multi-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security: Sticky MAC, MAC whitelisting *
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • IPv4 and IPv6 ACLs
  • Secure Connect *
  • Adaptive Policy

Note: *Available in a future software release

C9300L-24T-4X-M specifications:

Interfaces Specifications
Interfaces 24 x 1GbE Data
Fixed Uplinks (SFP+) 4x 10G/1G SFP+
320G Hardware Stack Ports 2
Dedicated Management Interface 1
PoE/ UPoE Capabilities n/a
Physical Specifications
Dimensions (h x w x d)
W/ Default Power Supply
1.73 x 17.5 x17.7 in
(4.4 x 44.5 x 44.9cm)
Weight 14.93 lb (6.78 kg)
Mount Type 1U Rack Mount
Hot Swap Fans Yes, 3x
Operating Temperature -5°C to 45°C
Humidity 5 to 90%
Performance
Switching Capacity 128 Gbps
Stacking Bandwidth 448 Gbps
Forwarding rate 95.23 / 333.33 Mpps
Power Supply and Specifications
Default Power Supply PWR-C1-350WAC-P-M
Hot Swap Power Supply Yes, Dual
Available PoE W/ Primary PS n/a
Available PoE W/ Secondary PS** n/a
PoE W/ 1100W Secondary PS n/a
Power Load (idle/max) 56.85 / 73.54 W
Regulations and Compliance
Electromagnetic Compatibility FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317
Safety CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Environmental Reduction of Hazardous Substances (RoHS)
Warranty Full lifetime hardware warranty with next-day advanced replacement included
MTBF Rating
MTBF at 25°C 387,700
Package contents
Whats In the Box In addition to the MS switch, each shipment includes the following.
  • 1 x default power supply unit for the switch model (please refer to the power supply and specifications section)
  • Rack mount brackets and screw kit
  • 3 x Pre-installed fans.
  • STACKING NOTE: The c9300L does NOT include stacking ports by default. Please order the C9300L-STACK-KIT2-M with every C9300L switch that you plan to deploy in a stack. That kit includes two stacking ports and a 50cm stacking cable.

Note: ** The PoE values are provided considering the secondary PS to be the default power supply of the respective model.

Documentation:

Download the Cisco Meraki Catalyst 9300L-M Series Switch Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Cisco Meraki Products
Catalyst Meraki 9300L-M Gigabit Switches
Cisco Meraki Catalyst 9300L 24-port 1 GbE Data with 4x 10G/1G fixed uplinks Switch
Important Licensing Information: To activate and manage your Cisco Meraki Switch, a purchase of a Cisco Meraki license is mandatory.
#C9300L-24T-4X-M
Our Price: Request a Quote
Cisco Meraki Enterprise License and Renewal License
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 1 Year
#LIC-C9300-24E-1Y
List Price: $1,691.00
Our Price: $913.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 3 Year
#LIC-C9300-24E-3Y
List Price: $3,190.00
Our Price: $1,723.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 5 Year
#LIC-C9300-24E-5Y
List Price: $5,335.00
Our Price: $2,881.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 7 Year
#LIC-C9300-24E-7Y
List Price: $7,481.00
Our Price: $4,040.00
-->
Cisco Meraki Catalyst 9300-M 24-port Enterprise license and Support, 10 Year
#LIC-C9300-24E-10Y
List Price: $10,686.00
Our Price: $5,771.00
-->
Cisco Meraki Advanced Licenses and Renewal License
Cisco Meraki Catalyst 9300-M 24-port Advanced license and Support, 1 Year
#LIC-C9300-24A-1Y
List Price: $4,486.00
Our Price: $2,423.00
-->
Cisco Meraki Catalyst 9300-M 24-port Advanced license and Support, 3 Year
#LIC-C9300-24A-3Y
List Price: $8,695.00
Our Price: $4,696.00
-->
Cisco Meraki Catalyst 9300-M 24-port Advanced license and Support, 5 Year
#LIC-C9300-24A-5Y
List Price: $14,491.00
Our Price: $7,826.00
-->
Cisco Meraki Catalyst 9300-M 24-port Advanced license and Support, 7 Year
#LIC-C9300-24A-7Y
List Price: $20,287.00
Our Price: $10,956.00
-->
Cisco Meraki Catalyst 9300-M 24-port Advanced license and Support, 10 Year
#LIC-C9300-24A-10Y
List Price: $28,983.00
Our Price: Request a Quote
-->
Cisco Meraki Accessories
Cisco Meraki Catalyst 9300-M Rack Mount Kit
#4PT-KIT-T1-M
Our Price: Request a Quote
Cisco Meraki C9300 715W AC Power Supply
#PWR-C1-715WAC-P-M
List Price: $3,340.00
Our Price: $1,819.00
-->
Cisco Meraki C9300 1100W AC Power Supply
#PWR-C1-715WAC-P-M
List Price: $3,340.00
Our Price: $1,819.00
-->
Cisco Meraki C9300 1900W AC Power Supply
#PWR-C1-1900WAC-P-M
Our Price: Request a Quote
Cisco Meraki Stack Kit for 9300L. Includes two adapters and one 50cm stack cable
#C9300L-STACK-KIT2-M
Our Price: Request a Quote
Catalyst Meraki 50 cm Stacking Cable Spare
#STACK-T3A-50CM-M
List Price: $282.00
Our Price: $152.00
-->
Catalyst Meraki 1m Stacking Cable Spare
#STACK-T3A-1M-M
Our Price: Request a Quote
Cisco Meraki System Fan
#FAN-T2-M
Our Price: Request a Quote
