Overview:
Perfect for securely connecting outdoor access points, IoT devices, and users in ruggedized hot/cold/tight environments.
Cisco Meraki MS130R extends reliable and secure layer 2 connectivity to ruggedized environments. The MS130R provides up to 240W of PoE and IP30 protection, making it perfect for connecting outdoor access points, cameras, and devices in extreme temperatures (-40°C to 70°C or -40°F to 158°F) and tight spaces.
Designed for adapting to non-traditional environments, the diverse mounting and power options offer deployment flexibility. The powerful Meraki cloud-native platform enables seamless and remote deployment and management of entire Meraki product suite through one centralized dashboard.
Product highlights
- Power more use cases with up to 240 W PoE+ and IP30 protection
- Extended operating temperature from -40 °C to 70 °C (or 40 °F to 158 °F)
- Flexible mounting and power options for different deployment needs
- Manage all your environments in one powerful Meraki cloud-managed dashboard
- MS130 mGig (-X) models are hardware-ready for Adaptive Policy with a future firmware upgrade and Advanced license
Features and capabilities
Meraki switches include all of the traditional Ethernet features found in modern enterprise access switches, including:
Intelligent campus and branch switching
With built-in monitoring, troubleshooting, and logging capabilities, Meraki switches provide a refreshing new approach to managing network infrastructure, regardless of deployment size. The virtual stacking technology eliminates the need for configuration scripts and commands, empowering administrators to make changes quickly and securely on one or all of the switches in a deployment at once.
Wired security without compromise
Whether deployed in an office environment, hospital, or retail store, Meraki switches make enforcing security policies a breeze. Set up multiple policies and enable them at the port level or apply them across the entire network in a few clicks. Meraki switches also provide comprehensive security reporting, making it easy to proactively discover rogue DHCP servers and other malicious activity on the network.
Troubleshooting the way it should be
Drastically reduce time to resolution with a variety of powerful troubleshooting tools, such as remote cable testing and packet captures, that help isolate and troubleshoot network issues. With the dynamic network topology of Meraki, automatically see how the entire network is interconnected and ensure the team receives alerts upon power loss, downtime, or configuration changes.
Stack power and improved physical stacking
Stack power pools power from each individual power supply unit (PSU) in a switch stack to form a larger, shared pool of power that provides additional redundancy and also helps reduce costs by managing the available PoE more efficiently. Improved physical stacking helps in faster-stack convergence in case of a failover, which is critical in large enterprise deployments.
Industry-leading cloud management
The Meraki cloud-management architecture delivers true zero-touch switch provisioning. Configure switches before they arrive on-site or use Meraki templates to standardize an entire fleet of switches, no matter what size.
With Meraki virtual stacking, administrators can manage up to thousands of ports from a single dashboard, enabling rapid and streamlined configuration that could otherwise take weeks to complete.
Built-in application layer visibility
Meraki is the only switch to include integrated layer 7 fingerprinting. Identify hundreds of applications, from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimization of network resources and maintenance of optimal network performance.
Beyond-the-network software architecture
Meraki switches run the same operation system used by all Meraki products. The use of a common operating system allows a consistent experience across all product lines, from security products to VoIP phones. Meraki switches automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.
Game-changing Benefits:
Built for harsh environments

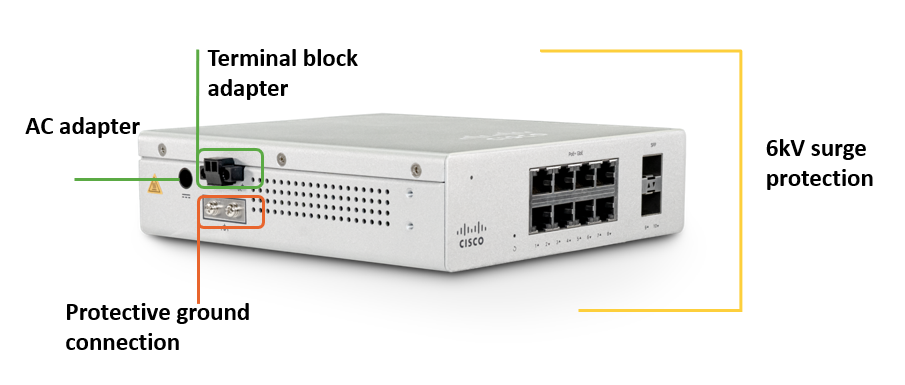

- Protective ground connection design
- Flexible powering options: terminal block and DC power jack
- 8x 1 G ports and 2x 1 G SFP uplink
- Flexbile mounting options: rack, wall, and DIN rail mounting options
Power/PoE
- Monitor and plan PoE usage from anywhere
- Power PoE devices with up to 30 W per port
- Diversify power supply options with an external AC adapter or DIN rail AC power supply
Cloud managed
- Remote packet capture tools via the Meraki dashboard
- IPv4/6 ACL support
- Review, schedule, and update firmware for all your switches in one location
- Flexibility and ecosystem extensibility with Meraki API and ecosystems
Enterprise hardware and support
- Layer 7 visibility and built-in application layer visbility
- Rich telemetry source and endpoint modeling
- Visualize the connection path of each endpoint to the internet
- Voice and video QoS
- Non-blocking switch fabric
Switching capabilities
- IPv4/6 ACL support
- SNMP/syslog integration
- Layer 2
- DHCP relay
- DHCP snooping
MS130R-8P Specifications:
| 1Gbe RJ45 | 8 |
| 1 Gbe SFP | 2 |
| Dedicated Mgmt Interface | — |
| PoE Type | 802.3bt |
| PoE Port Budget | 30W |
| PoE Switch Budget | 240W |
| Power Input | 50-54VDC, 5.6A |
| Power Load (idle/max) | 12W/257W |
| Power Consumption | 12W-257W |
| Operating Temperature | see Thermal and PoE specifications section |
| Storage and Transportation Temperature | -40°F - 185 °F -40°C - 85°C |
| Humidity | 5% to 95% |
| Mounting | Desktop, Wall mount, DIN rail options |
| Switching Capacity | 20Gbps |
| Power Supply | External AC Adapter or DIN rail AC power supply options |
| Fan Operation | Fanless |
| Dimensions (h x w x d) | 1.75 x 6.18 x 6.69in (4.4 x 15.7 x 17cm) |
| Weight | 12.12 lb (0.96 kg) |
| Whats In the Box |
|
Safety Certifications |
UL 60950-1 / UL 62368-1 3rd Edition CAN/CSA C22.2 No. 60950-1 / No. 62368-1 EN 60950-1 / EN 62368-1 IEC 60950-1 / IEC 62368-1 2nd & 3rd Edition NOM-019-SCFI-1998 CNS 15598-1 |
| EMC Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A ICES 003 Class A EN 55032/ 55035 Class A AS/NZS CISPR 32 Class A VCCI Class A CNS 15936 EN 300 386 IEC/EN 61000-4-9 IEC/EN 61000-4-29 |
| International Standards | EN 50581 (RoHS) China RoHS CE Marking RCM Marking (Australia/New Zealand) Japan VCCI & JATE Taiwan BSMI Korea KC Brazil ANATEL China NAL Mexico IFETEL EU WEEE NEMA TS-2 IP30 IEC 60068 -2-3 / -2-30 |
Thermal and PoE limitations
Operating temperature limitations
| Installation Environment | Fan/blower equipped enclosure | Vented enclosure | Sealed enclosure | Desktop |
| Ventilation | 200 LFM | 40 LFM | 0 LFM | 40 LFM |
| Operating Temperature Limits | -40°F - 158°F -40ºC to 70ºC |
-40°F - 149°F -40ºC to 65ºC |
-40°F - 140°F -40ºC to 60ºC |
Vertical -40ºC to 60ºC Horizontal -40ºC to 55ºC |
Power Supply De-rating
De-rating is the reduction of the output power depending on the ambient temperatures. When the ambient temperature rises above a certain threshold, the amount of power that the power supply can output decreases as the temperature rises, which limits the amount of power the switch can provide to connected PoE devices.
| Power Supply | MA-PWR-300W-INDADP | PWR-IE240W-PCAC-L= | PWR-IE480W-PCAC-L= |
| De-rating | 24W/5°C over 45°C | 30W/5°C over 50°C | 60W/5°C over 50°C |
Documentation:
Download the Cisco Meraki MS130R Switch Datasheet (PDF).
